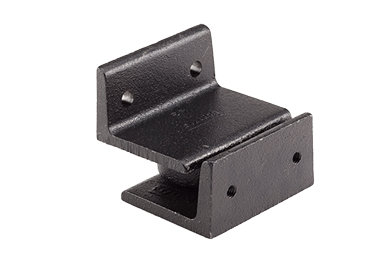

The SR Series are passive seismic restraints designed to restrain mechanical equipment during a seismic event. Our snubber design incorporates thick elastomeric bearing surfaces designed to decelerate the seismic force input to the equipment while also restraining the equipment to the building structure. Designed to work in conjunction with either spring or elastomeric vibration isolators, The SR Series maintains a 1/4″ air gap in all directions between the steel housing and the elastomeric element in order to avoid short-circuiting of the isolator. The steel base and top plates incorporate two properly spaced and sized anchor bolt holes. The housing can also be welded to the mechanical equipment and supporting structure if required. These snubbers provide a minimum of 1.0g restraint capability in all directions.
Features & Benefits
Capable of restraining 1.0g of force
Properly-sized and spaced bolt holes included for easy mounting.
Snubber design decelerates seismic forces
Compatible with spring or elastomeric vibrators
Applications
Air handling units
Fans
Pumps
Chillers
Air compressors
HVAC equipment
Power generation
Electrical transformers
Motors
