Model Korpads Waffle Embossed Both Sides, Neoprene/Elastomeric Floor Mounted Non-Seismic

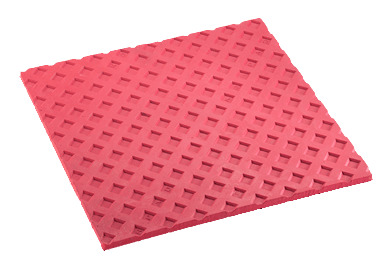

Korpads are made from a high-quality, durable, neoprene pad material with waffle design molded on to both faces. It is resistant to water, oils, cleaning compounds, heat and other environments normally found in manufacturing and processing plants. Tear and abrasion resistance is excellent while tensile strength and compressive strength is extremely high. Korpads are 1/4″ thick in 24″ x 24″ sheets and are available in load ranges to 200 lbs./sq. in. Black Korpad is for use with lighter equipment. Red Korpad is used for heady-duty applications.
Benefits
Rugged steel housing serves as blocking during equipment erection
Housing offers no difference in elevation between installed and operating height
Installation spacer ensures accurate installation height and adjustment
Top plate may be welded or bolted to equipment allowing flexible design options
Housings are identical in height within each series
Easily accessible bolt holes permit simplified installation
Elastomeric acoustical cup eliminates high frequency vibrations
Color-coded springs permit ease of identification of load capacity
Internal adjustments, with interchangeable springs
Rugged steel housing is designed to handle high wind and high seismic forces
For use in most seismic and wind applications
Applications
HVAC equipment
Air handling units
Cooling towers
Chillers
Engine gensets
High seismic loads
