MAXI-FLEX EZ CUT PADS, Neoprene/Elastomeric Floor Mounted Non-Seismic

SKU: Multiple-Layer-Pads-1 Category:

* Request quote to see pricing

Request Quote

Maxi-Flex (Maxiflex) EZ Cut Series are elastomeric pad-type isolators that provide excellent high frequency sound attenuation in use directly under HVAC, power generation and electrical equipment. The EZ Cut Series are very effective in preventing shock and vibration transmissions in non-critical installations.

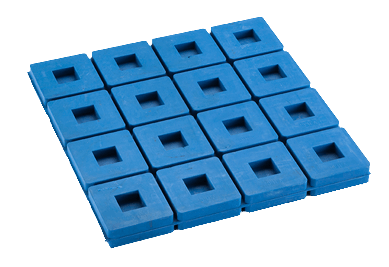

The EZ Cut Series are made up of molded elastomeric (Durulene™) pads in standard size sheets – 18″ x 18″ x 3/4″ thick, consisting of 2″ square segments. A thin web separates the segments and can easily be cut to fit the required loading and shape of equipment bases. The EZ Cut Series are available in four load ranges from 120 to 360 lbs. per 2″ square segment. The pads are molded in color-coded, oil-resistant, Durulene™ elastomer (weather-resistant) for easy identification and durability.

FEATURES & BENEFITS

  • Four load ranges from 120 – 360 lbs. per 2” square segment satisfy a wide variety of deflection requirements
  • Thin web separating square segments permits easy cut-to-fit for required equipment loading
  • Color-coded, oil-resistant elastomer provides simple identification and durability
  • Weather-resistant Durulene™ elastomer

APPLICATIONS

  • Air handling units
  • Fans
  • Pumps
  • Chillers
  • Air compressors
  • HVAC equipment
  • Power generation
  • Electrical transformers
  • Motors

Model Maxi-Flex 90-800 lbs. Durulene 2 Square Inch Elastomeric Pad_rev.8

Model Maxi-Flex 120-360 lbs. Elastomeric Pad_rev 6

Model Maxi-Flex 180-360 lbs. Extreme High Temperature 2 Square Inch Elastomeric Pad_rev.7

Model Multi-Layer Maxi-Flex 120-360 lbs. Elastomeric Pad_rev.7

Model Single-Layer Maxi-Flex 120-360 lbs. Plate and Elastomeric Pad.pdf
