Model Shear-Flex Isolator Pads, Neoprene/Elastomeric Floor Mounted Non-Seismic

SKU: Shear-Flex-Isolator-Pads Category:

* Request quote to see pricing

Request Quote

Shearflex Pads are elastomeric pad-type isolators that provide excellent high frequency sound attenuation in use directly under HVAC, power generation and electrical equipment. Shearflex Pads are very effective in preventing shock and vibration transmission in non-critical installations.

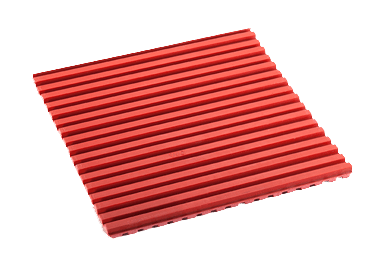

Shearflex Pads are molded elastomeric pads in a resilient cross-rib design. Standard sheet sizes are 18″ x 18″ x 3/8″ thick and 18″ x 36″ x 3/8″ thick. The segments can easily be cut to fit the required loading and shape of equipment bases. Shearflex Pads are available in three load ranges from 20 to 100 psi. The pads are molded in color-coded, oil-resistant, Durulene™ elastomer (weather-resistant) for easy identification and durability.

Shearflex Pads offer exceptional gripping – eliminating the need for bolting or cementing in most applications. Shearflex Pads may also be used in multiple layers to increase deflection and are available pre-assembled, cut-to-size.

Features & Benefits

  • Three load ranges from 20 to 100 psi satisfy a wide variety of deflection requirements
  • Resilient cross-rib design provides exceptional griping that requires no bolting or cementing
  • Weather-resistant Durulene™ elastomer
  • Multiple layer installation offers deflection and load range options


  • Air handling units
  • Fans
  • Pumps
  • Chillers
  • Air compressors
  • HVAC equipment
  • Power generation
  • Electrical transformers
  • Motors

Model Shear-Flex 40-100 PSI 0.375 Inch Thick Elastomeric Pad_rev.3

Model Shear-Flex 30-140 PSI Durulene 0.375 Inch Thick Elastomeric Pad_rev.5

Model Shear-Flex 165 PSI 18 x 18 Natural Rubber Elastomeric Pad 0.375 inch Thick_rev.3

Model Shear-Flex 165 PSI 18 x 36 Natural Rubber Elastomeric Pad 0.375 inch Thick_rev.3

Model Shear-Flex Combination Shear Pad and Plate_rev.2
