| Unit | US Standard |
|---|---|
| Series | S3-SS |
| Travel | 1" |
| US Travel Filter | 0 to 2" |
| Capacity | 35 lbs |
| US Capacity Filter | 0 to 55 lbs |
| Weight | 0.65 lbs |
| A | 2.620" |
| B | 1.000" |
| C | 2.620" |
| D | 2.125" |
| E | 1.250" |
| F | 0.61" |
| G | 1.50" |
| H | 2.125" |
| Accuracy | 0.0001" |
| Product Type | Ball Slide |
| Finish | Black-Other |
| D1 | 0.328 |
| D2 | 0.328" |
| d_small | .204" |
| h_small | 0.205" |
| I | #10-32 |
| M1 | 21.87 |
| M2 | 16.8 |
| M3 | 17.64 |

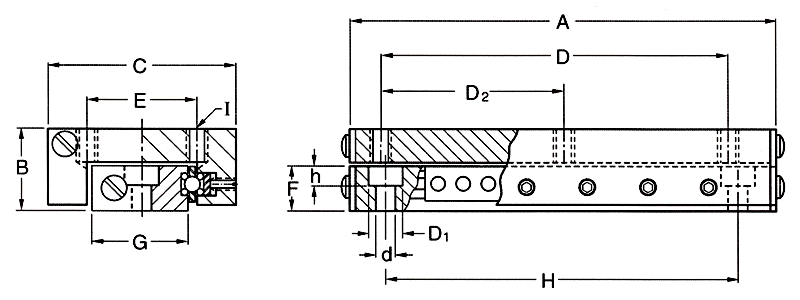

Dimension Drawing
