| Unit | US Standard |
|---|---|
| Series | S3-SS |
| Travel | 5" |
| US Travel Filter | 4.01 to 6" |
| Capacity | 139 lbs |
| US Capacity Filter | 111 to 165 lbs |
| Weight | 1.75 lbs |
| A | 8.000" |
| B | 1.000" |
| C | 7.000" |
| D | 0.204" |
| E | 1.250" |
| F | 0.61" |
| G | 1.50" |
| H | 7.375" |
| Accuracy | 0.0001" |
| Product Type | Ball Slide |
| Finish | Black-Other |
| D1 | 0.328 |
| D2 | 0.328" |
| d_small | .204" |
| h_small | .205" |
| I | #10-32 |
| M1 | 98.42 |
| M2 | 283.5 |
| M3 | 297.68 |

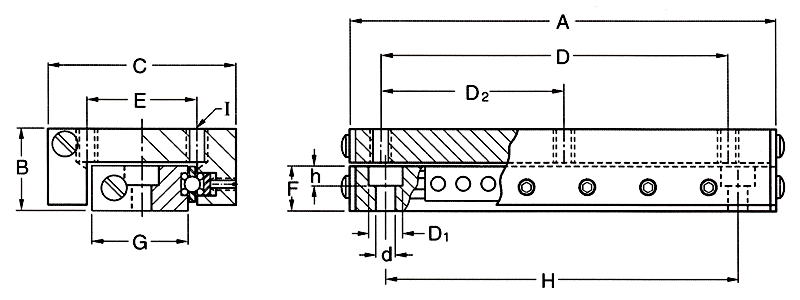

Dimension Drawing
