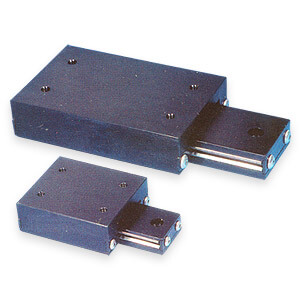

Precision Ball Slides

Precision Ball SlidesSeries: M-SS, MA-SS, S2-SS, SA2-SS, S3-SS, SA3-SS, S5-SS, SA5-SS

  • Load Capacity: 12 – 170 lbs.
  • Travel: 1.0 – 30″
  • Length: 2.00 – 9″
  • Straight Line Accuracy: 0.0001″ / inch of travel
  • Positional Repeatability: .00005″
  • Coefficient of Friction: 0.002 typical
  • Construction: Aluminum carriage and base, hardened 400 series stainless steel balls, shafts and pre-load gibs.
  • Finish: Black anodize. Other finishes on request.

Isotech’s Precision Ball Slides offer the designer an aluminum base and carriage with hardened stainless components for superior corrosion resistance and less chance of particulate contamination. Available in standard low profile mounting, the designer can choose a style of bearing and type of rolling element specifically to meet the needs of the most particular applications.

Preload can be adjusted to change the friction and axial play characteristic therefore customizing the precision ball slide to its intended use. A 5-inch wide cross section allows the movement of bulky devices without the necessity of constructing tables with more than one unit.

Installation into your system is simple. Counterbored holes in the base permit quick attachment to your assembly. Components attach to the carriage in the existing threaded mounting holes.

  • Corrosion resistant hardened 400 series stainless steel internal components.
  • Up to 5″ wide cross section.
  • Interchangeable with other manufacturer’s products.
  • Low friction straight line design.
  • Adjustable preload.
  • Straight line design with 0.000050″ repeatability.
