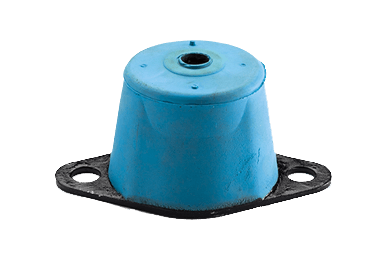

Model RDC2 Restrained Double Deflection Isolators, Neoprene/Elastomeric Floor Mounted Non-Seismic
RDC2 Series flush-type, captive failsafe elastomeric isolators provide effective shock and vibration control for use directly under HVAC, power generation and electrical equipment in conjunction with the equipment’s mounting holes or supplemental steel supports.
The RDC2 Series offers rugged, all-bonded construction. Structural sections are made of carbon steel and sintered metal for long-lasting durability. All metal surfaces have a corrosion-resistant coating that provides extra protection and long-life.
The elastomeric coatings resist oil, ozone and most solvents – providing optimum resilience in most conditions. The failsafe design has a built-in snubbing washer that prevents the elastomeric elements from coming in contact with the housing. The operating temperature of -20°F to + 180°F offers continuous operation in all ambient conditions.
Benefits
Static load range from 90 550 lbs. offers several solutions for lighter load applications
Compact housing design permits installation in equipment where space is at a premium
Built-in, failsafe snubbing keeps equipment secure
Corrosion-resistant coatings on all metal surfaces offer extra
protection and long-life
Natural frequency of 12 Hz at maximum load provides structure-borne noise attenuation in even the most challenging applications
Damping ratio of 5:1 offers excellent energy dissipation
Can be used in floor or wall mounted applications
Applications
Air handling units
Fans
Pumps
Chillers
Air compressors
HVAC equipment
Boilers
Power generation
Electrical transformers
Electric panel boards
Motors
