Model Pump Concrete Inertia Base End Suction Pumps, Supplemental Base Mounted Isolated Non-Seismic

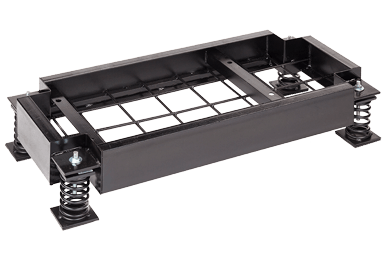

The VMC Group Pump Concrete Inertia Base End Suction Pumps consist of structural steel channel perimeter frame, reinforced steel, equipment mounting templates with anchor bolts and open spring isolators with height saving brackets or recessed spring pockets upon request. Spring deflections in 1″ – 5″ are available. Inertia base thicknesses of 6″ – 12″ are available.

When Pump Concrete Inertia Base End Suction Pumps are filled with concrete, they become an inertia base and provide an effective means to isolate vibration and limit the motion of suction pumps.

Pump Concrete Inertia Base End Suction Pumps are rectangular in size and are engineered to support the base elbow of a suction pump. The isolator housings are offset with the perimeter of the base.
