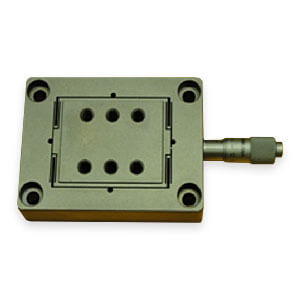

Model NX85-3040S, NanoMover

SKU: NX85-3040S Category:

* Request quote to see pricing

Request Quote

Load Capacity

3 kg (6.6 lb)

Travel Range

30 micrometers

Resolution

40 nm/division

Dimensions

130 mm x 66 mm x 23 mm

Construction

Stainless steel

Guiding Structure

Frictionless flexure

NanoMover is a revolutionary product (patented in 5 countries). It takes the traditional linear translation stage and modifies it into a finer resolution. Unlike other nano positioning devices out on the market, Isotech nanomovers are driven by mechanical means.

Features:

  • Translation stage with resolution in nanometer range
  • Monolithic stainless steel construction with electric discharge machining
  • High precision frictionless flexure guiding system with motion amplification
  • Pitch, yaw, and roll are totally eliminated
  • Manually driven

Applications:

  • Nano-metric linear drives
  • Laser cavity tuning
  • Interferometry
  • Nano-metrology
  • Fiber optic alignment
  • Wafer and mask positioning
  • Inspection systems
  • Tool adjustments
  • Wear compensation
