Model MSH Isolators, Spring Floor Mounted Seismic

SKU: MSH-Isolators Category:

* Request quote to see pricing

Request Quote

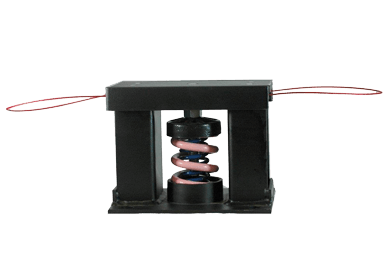

MSH Series Isolators, are the MS Series Isolators reinforced for high seismic load conditions. MSH Series Isolators are designed for maximum seismic design categories in the United States. MSH Series Isolators combine our open spring isolators within a rugged welded seismically rated steel housing. To minimize, the code required seismic loads on the isolated equipment. The housing is designed to limit equipment motion to ¼” in horizontal directions due to wind or seismic loads.

MSH Isolators have internal spring adjustment. The top housing incorporates seismic restraint bolts that pass through the lower housing and are protected in all directions by an elastomeric bushing. Combined, the restraint bolts and bushings act as the internal snubbing devices for the isolator. To achieve accurate installation heights, The VMC Group has incorporated an installation spacer between the lower and upper housing.

After the equipment is installed and the isolators are properly adjusted, there will be no difference between the installed and operating heights. Mechanical equipment can be positively attached to the top housing by utilizing the pre-drilled bolt holes or by welding directly to the housing. Low frequency T-Series steel springs are located within the housing and are seated in an elastomeric acoustical cup that provides high frequency attenuation and eliminates metal-to-metal contact. The spring and cup design allows for easy replacement or changing of springs when required and all springs are color-coded for ease of identification in the field. The lower housing incorporates an oversized base plate that spreads the anchor bolt over a wider area – this is specifically designed to increase seismic restraint capability.

As an additional benefit, ease of installation is also achieved by allowing easy access to the anchor bolts. These isolators are designed for installations in either concrete or steel and the base plates are pre-drilled with mounting holes to accommodate attachment. MSH Series Isolators are available with 1″ through 5″ deflection springs. Each style of isolator has a load range of 50 lbs. to 68,000 lbs.

Features & Benefits

  • Rugged steel housing serves as blocking during equipment erection
  • Housing offers no difference in elevation between installed and operating height
  • Installation spacer ensures accurate installation height and adjustment
  • Top plate may be welded or bolted to equipment – allowing flexible design options
  • Housings are identical in height within each series
  • Easily accessible bolt holes permit simplified installation
  • Elastomeric acoustical cup eliminates high frequency vibrations
  • Color-coded springs permit ease of identification of load capacity
  • Internal adjustments, with interchangeable springs
  • Rugged steel housing is designed to handle high wind and high seismic forces
  • For use in most seismic and wind applications


  • HVAC equipment
  • Air handling units
  • Cooling towers
  • Chillers
  • Engine gensets
  • High seismic loads

Model MSH-2E 80-2700 LBS.Vibration Isolator with Integral Seismic Restraint and Internal Adjustment 2 inch deflection

Model M2SH-1E 800-6500 lbs. Vibration isolator with integral seismic restraint and internal adjustment 1inch deflection

Model MSH-3C 75-1165 LBS.Vibration Isolator with Integral Seismic Restraint and Internal Adjustment 3 inch deflection

Model M6SH-1E 6000-19500 lbs. Vibration isolator seismic restraint 1 inch deflection

Model MSH-1E 195-3250 lbs. Vibration isolator with integral seismic restraint and internal adjustment 1 inch deflection

Model M4SH-2F 2000-8800 lbs. Vibration isolator seismic restraint 2 inch deflection

Model M2SH-2F 300-4400 lbs. Vibration isolators seismic restraint 2 inch deflection

Model MSH-2F 150-2200 lbs. Vibration isolators seismic restraint 2 inch deflection
