| Unit | Metric |
|---|---|
| Series | LSA2 |
| Travel | 50 mm |
| Metric Travel Filter | 0 to 50 mm |
| Capacity | 9.1 kg |
| Metric Capacity Filter | 0 to 25 kg |
| Accuracy | 0.003 mm |
| Product Type | Ball Slide |
| M1 | 2.02 |
| M2 | 3.32 |
| M3 | 3.49 |
| A | 155.7 |
| B | 88.9 mm |
| D | 65 mm |
| H | 65 mm |
| Axis | (XYZ) Triple Axis |

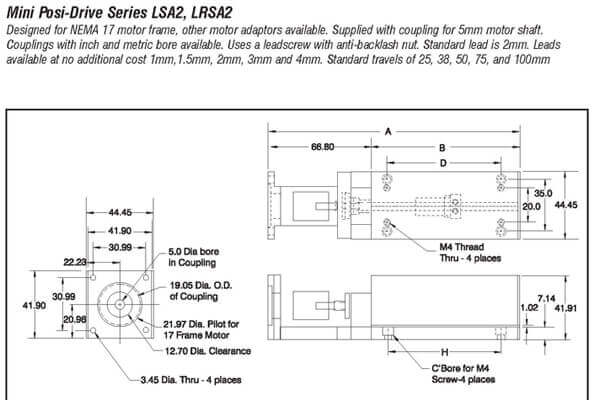

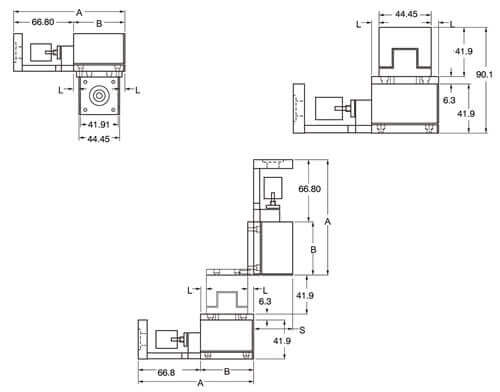

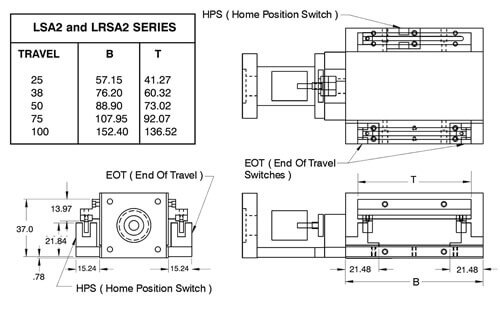

Dimension Drawing
