| Unit | Metric |
|---|---|
| Series | LRSA3 |
| Travel | 250 mm |
| Metric Travel Filter | 0 to 50 mm |
| Capacity | 68 kg |
| Metric Capacity Filter | 0 to 25 kg |
| Accuracy | 0.003 mm |
| Product Type | Ball Slide |
| M1 | 74.54 |
| M2 | 294.61 |
| M3 | 311.25 |
| A | 473 |
| B | 330 mm |
| H | 200 mm |
| L | 132 mm |
| S | 75 mm |
| P | 14 |
| E | 143 |
| R | 95 |
| F | 15 |
| G | 140 |
| H1 | 275 |
| J | 27.5 |
| K | 65 |
| M | 10 |
| N | 104 |
| Axis | (XYZ) Triple Axis |

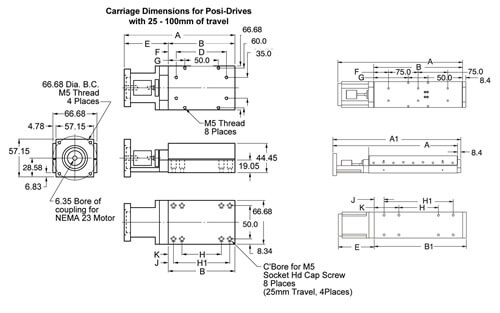

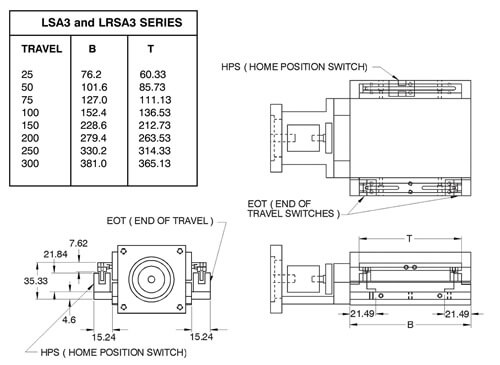

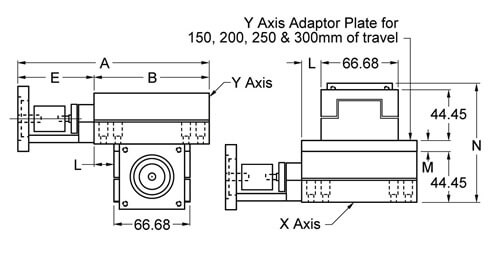

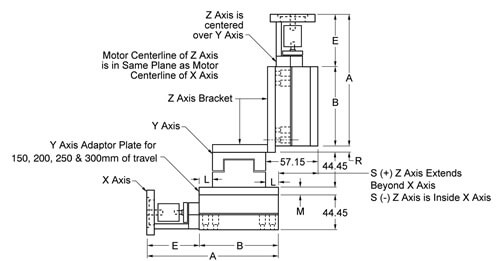

Dimension Drawing
