| Unit | US Standard |
|---|---|
| Series | LRS1 |
| Travel | 2" |
| US Travel Filter | 0 to 2" |
| Capacity | 20 lbs |
| US Capacity Filter | 0 to 55 lbs |
| Accuracy | 0.0001" |
| Product Type | Crossed Roller |
| M1 | 55.71 |
| M2 | 84.56 |
| M3 | 88.79 |
| A | 5.07" |
| B | 3.000" |
| C | 2.07 |
| D | 2.375" |
| H | 2.500" |
| L | 0.810" |
| S | 0.690" |
| Axis | (XY) Double Axis |

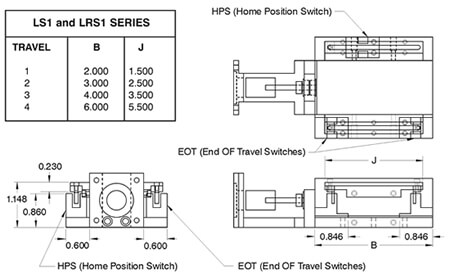

Dimension Drawing
