| Unit | Metric |
|---|---|
| Series | LRSA3 |
| Travel | 300 mm |
| Metric Travel Filter | 0 to 50 mm |
| Capacity | 82 kg |
| Metric Capacity Filter | 76 to 100 kg |
| Accuracy | 0.003 mm |
| Product Type | Ball Slide |
| M1 | 78.78 |
| M2 | 324.41 |
| M3 | 352.7 |
| A | 549 |
| B | 381 mm |
| H | 250 mm |
| L | 157 mm |
| S | (100) mm |
| P | 14 |
| E | 168 |
| R | 121 |
| F | 40.5 |
| G | 165.5 |
| H1 | 625 |
| J | 28 |
| K | 65.5 |
| M | 10 |
| N | 104 |
| Axis | (X) Single Axis |

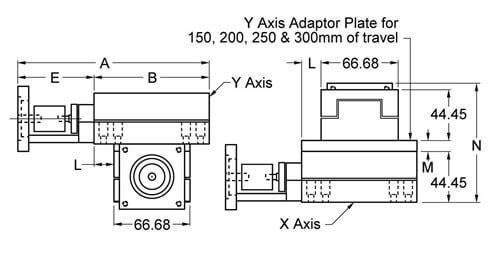

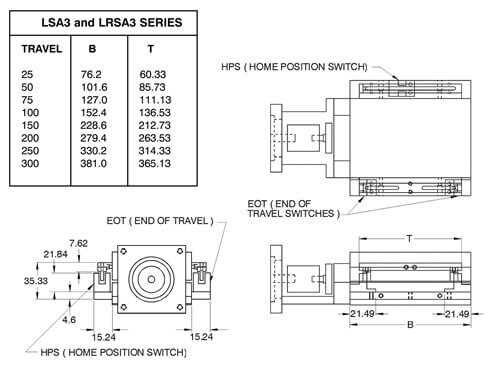

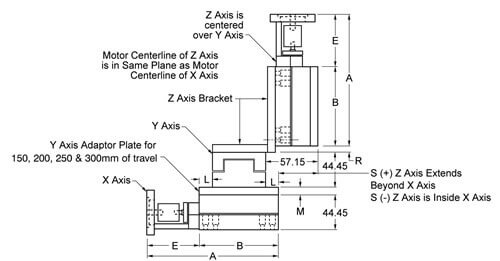

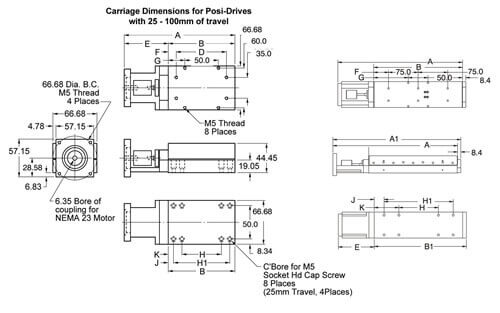

Dimension Drawing
