Model Fabri-Flex Reinforced Duck & Neoprene Pads, Neoprene/Elastomeric Floor Mounted Non-Seismic

SKU: Fabri-Flex-Reinforced-Duck-&-Neoprene-Pads Category:

* Request quote to see pricing

Request Quote

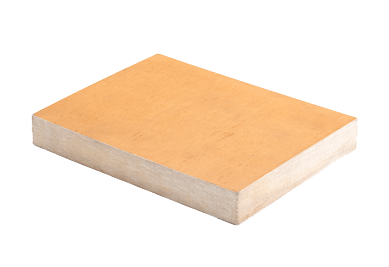

Fabri-Flex isolation pads with 1000 psi loading capability for excellent high frequency sound attenuations under extremely heavy load applications.

Fabri-Flex Pads consist of multiple layers of high quality, cotton duck fabric thoroughly impregnated and bonded together by a specially formulated elastomeric compound. Standard thickness ranges from 1/8″ to 1″ and the pads are cut to size requirements.

Fabri-Flex Pads are also available in a washer design. Manufactured of the same material, the washers are designed to eliminate metal-to-metal contact between steel bolting and steel bearing plates.

Features & Benefits

  • 1,000 psi loading capabilities
  • Multiple layered, cotton duck fabric thoroughly impregnated with an elastomeric compound for durability
  • Standard thickness ranges from 1/8″ to 1″
  • Optional washer design

Applications

  • Air handling units
  • Fans
  • Pumps
  • Chillers
  • Air compressors
  • HVAC equipment
  • Power generation
  • Electrical transformers
  • Motors

Model Fabri-flex reinforced duck isolation pad

Model NDB 50-2000 lbs. Elastomeric square inch isolation pad

Model NRC 20-4860 lbs. Elastomeric square inch isolation pad

Model SP-NR 20-4050 lbs. Elastomeric isolation pad bonded to steel plate style A thru E
