Model Multiple Layer Pads, Neoprene/Elastomeric Floor Mounted Non-Seismic

SKU: Multiple-Layer-Pads Category:

* Request quote to see pricing

Request Quote

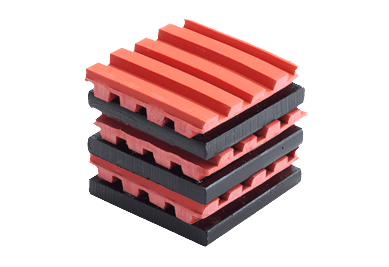

Multiple Layer Pads come in Shearflex or Maxiflex with a variety of layers of galvanized steel plates. Each assembly is cut to specified size and consists of required layers of Shearflex Pads or Maxiflex Pads bonded to 1/16″ thick galvanized steel plates between each layer. Multiple layer pads come in pre-configured assemblies: two layers and one plate, three layers and two plates and four layers and three plates.

A mounting hole can be provided with each configuration. Sizing comes in 2 square inch increments. The pads are molded in color-coded, oil-resistant, Durulene™ elastomer (weather-resistant) for easy identification and durability.

Features & Benefits

  • Color-coded, oil-resistant elastomer provides simple identification and durability
  • Weather-resistant Durulene™ elastomer
  • Optional isolation type: Shearflex Pad or Maxiflex Pad configurations
  • High load ranges available
  • Multiple layer pads and plates offer extra deflection and load ranges


  • Air handling units
  • Fans
  • Pumps
  • Chillers
  • Air compressors
  • HVAC equipment
  • Power generation
  • Electrical transformers
  • Motors

Model Multi-Layer Maxi-Flex 120-360 lbs. Elastomeric Pad_rev.7

Model SP-NR 20-4050 lbs. Elastomeric isolation pad bonded to steel plate style A thru E_rev.3

Model SP-NRC 20-4860 lbs. Elastomeric Isolation Pad Bonded to Steel Plate Style A thru E

Model Shear-Flex Combination Shear Pad and Plate_rev.2
