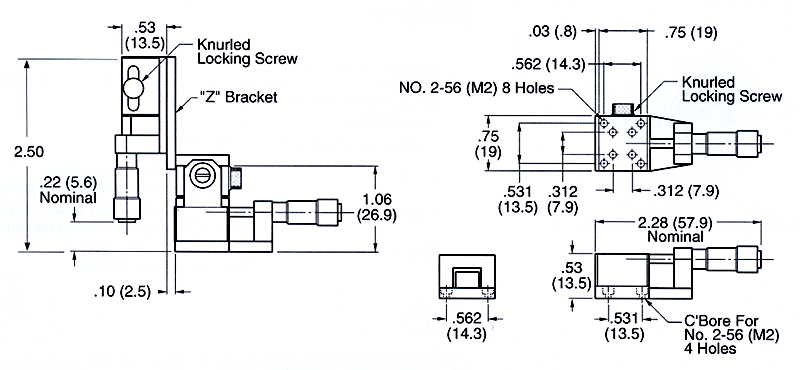

Model 99-XY, Ball Slide Positioning Stage
capacityxy5 lbs
UnitUS Standard
Series99
Travel.25"
IMInch
US Travel Filter0 to 2"
Capacity5 lbs
US Capacity Filter0 to 55 lbs
Accuracy0.0005"
Product TypeBall
M10.97"
M20.97"
M30.97"
C.562"
D.531"
E.312"
F.312"
G.63"
M.531"
CBORE2 - 56
Thread2 - 56
Holes8
N.562"
L2.28"
Hx.53"
Capacity XY5 lbs
Work Surface.75 X .75
Through Hole8
Axis(XY) Double Axis
Option PL Price50
OrientationCenter Line
