Model 2204-XYZ, Ball Slide Positioning Stage

SKU: 2204-XYZ Category:

* Request quote to see pricing

Request Quote

capacityz

capacityxy

Unit

US Standard

Series

2200

IM

Inch

Travel

2.00"

US Travel Filter

0 to 2"

Capacity

30 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0005"

Product Type

Ball

M1

28.44"

M2

26.88"

M3

26.88"

C

3.625"

D

3.125"

M

3.625"

CHole

1.50" DIA

CBORE

10 – 32

Thread

10 – 32

Holes

10

P

2.25"

L

10.25"

Hx

.91"

J

3.08"

K

.52"

Hy

1.82"

SLOT

1.50 x 2.50

Capacity XY

30 lbs

Capacity Z

30 lbs

Work Surface

4.12 X 4.12

Through Hole

10

Axis

(XYZ) Triple Axis

Option M Price

0

Option LM

1

Option LM Price

0

Option PL

1

Option PL Price

150

Orientation

Center Line

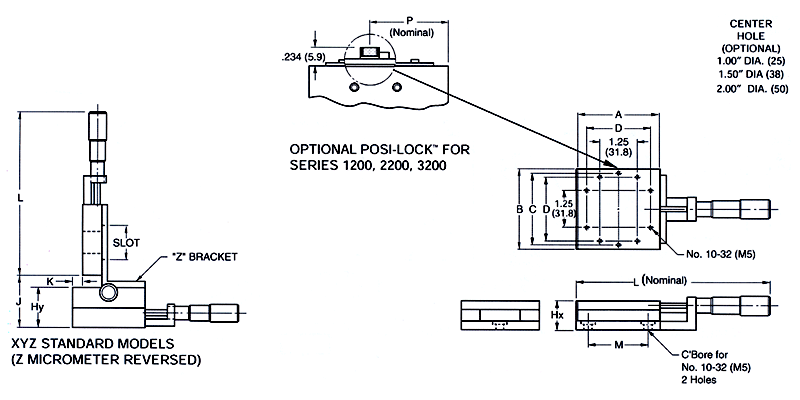

Dimension Drawing
