Model 451-XY, Ball Slide Positioning Stage

SKU: 451-XY Category:

* Request quote to see pricing

Request Quote

capacityxy

Unit

US Standard

Series

450

Travel

1.00"

IM

Inch

US Travel Filter

0 to 2"

Capacity

20 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0005"

Product Type

Ball

M1

8.51

M2

8.51"

M3

8.51"

C

.69"

D

1.12"

M

1.312"

CBORE

6 – 32

Thread

6 – 32

Holes

6

O

.875"

P

2.390"

L

5.88"

Hx

.75"

J

2.00"

Hy

1.50"

SLOT

.50 x 1.00

Work Surface

1.75 X 1.75

Through Hole

6

Axis

(XY) Double Axis

Option M Price

0

Option LM

1

Option LM Price

0

Option PL

1

Option PL Price

100

Orientation

Center Line

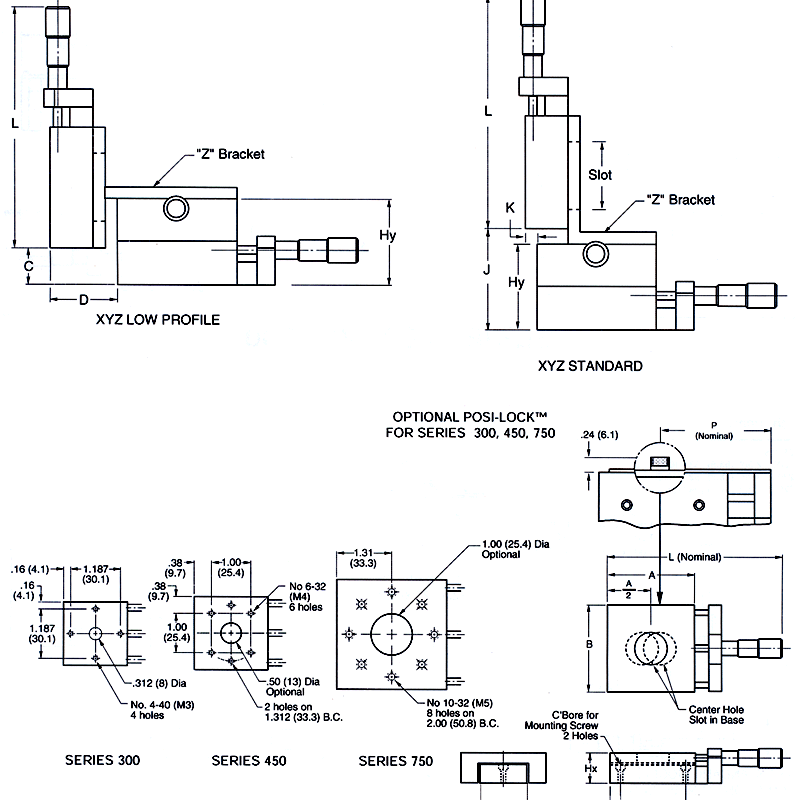

Dimension Drawing
