Model 702-XYZ, Ball Slide Positioning Stage

SKU: 702-XYZ Category:

* Request quote to see pricing

Request Quote

capacityz

capacityxy

Unit

US Standard

Series

700

IM

Inch

Travel

1.00"

US Travel Filter

0 to 2"

Capacity

60 lbs

US Capacity Filter

56 to 110 lbs

Accuracy

0.0005"

Product Type

Ball

M1

43.74"

M2

43.74"

M3

43.74"

C

1.00"

D

1.25"

E

.5"

M

3.38"

CBORE

10 – 32

Thread

10 – 32

Holes

8

O

1.500"

P

2.390"

L

8.25"

Hx

1.00"

J

2.06"

K

.32"

Hy

2.19"

Capacity XY

60 lbs

Capacity Z

60 lbs

Work Surface

4.00 X 2.62

Through Hole

8

Axis

(XYZ) Triple Axis

Option M Price

0

Option LM

1

Option LM Price

0

Option PL

1

Option PL Price

150

Orientation

Center Line

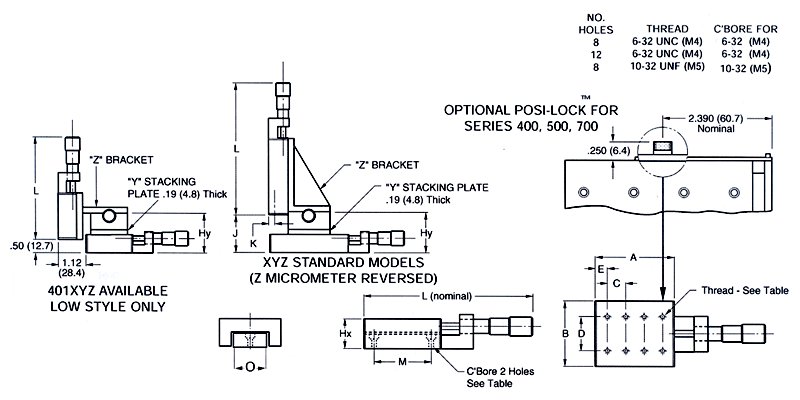

Dimension Drawing
