Model 450-XYZ, Ball Slide Positioning Stage

SKU: 450-XYZ Category:

* Request quote to see pricing

Request Quote

capacityz

capacityxy

Unit

US Standard

Series

450

IM

Inch

Travel

.50"

US Travel Filter

0 to 2"

Capacity

20 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0005"

Product Type

Ball

M1

8.51

M2

8.51"

M3

8.51"

C

.69"

D

1.12"

M

1.312"

CBORE

6 – 32

Thread

6 – 32

Holes

6

O

.875"

P

1.770"

L

4.38"

Hx

.75"

J

2.00"

Hy

1.50"

SLOT

.50 x 1.00

Capacity XY

20 lbs

Capacity Z

2 lbs

Work Surface

1.75 X 1.75

Through Hole

6

Axis

(XYZ) Triple Axis

Option M Price

0

Option LM

1

Option LM Price

0

Option PL

1

Option PL Price

150

Orientation

Center Line

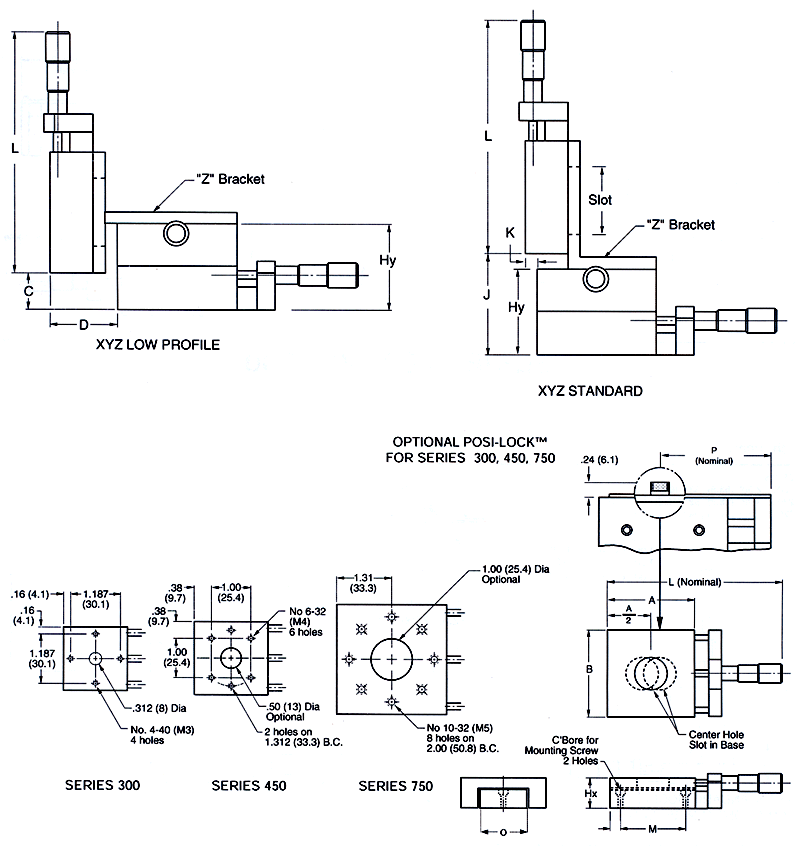

Dimension Drawing
