| Unit | US Standard |
|---|---|
| Series | 400 |
| Travel | .50" |
| IM | Inch |
| US Travel Filter | 0 to 2" |
| Capacity | 20 lbs |
| US Capacity Filter | 0 to 55 lbs |
| Accuracy | 0.0005" |
| Product Type | Ball |
| M1 | 8.51 |
| M2 | 8.51" |
| M3 | 8.51" |
| C | .50" |
| D | .875" |
| E | .25" |
| M | 1.62" |
| CBORE | 6 – 32 |
| Thread | 6 – 32 |
| Holes | 8 |
| O | .875" |
| P | 1.770" |
| L | 4.62" |
| Hx | .75" |
| Hy | 1.69" |
| Work Surface | 2.00 X 1.75 |
| Through Hole | 8 |
| Axis | (X) Single Axis |
| Option M Price | 0 |
| Option LM | 1 |
| Option LM Price | 0 |
| Option PL | 1 |
| Option PL Price | 50 |
| Orientation | Center Line |
| Capacity XY | 30 lbs |

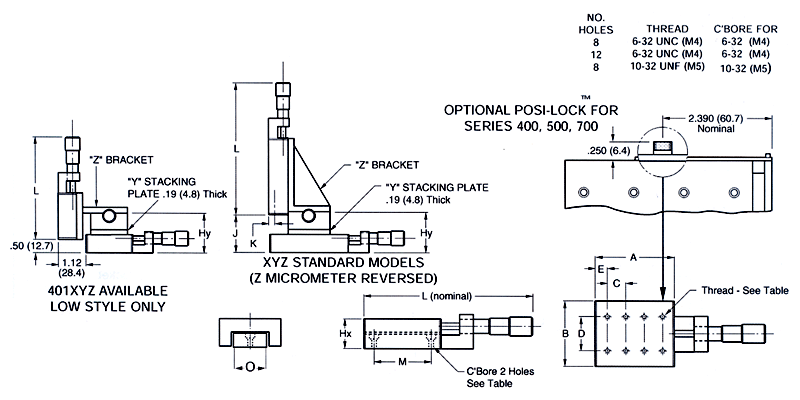

Dimension Drawing
