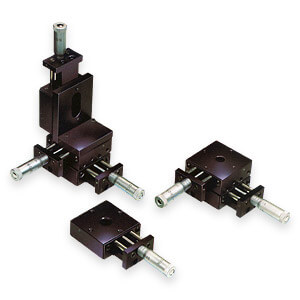

Model 2206P-X, Ball Slide Positioning Stage (plain model with no micrometers)
UnitUS Standard
Series2200
IMInch
Travel3.00"
US Travel Filter2.01 to 4"
Capacity30 lbs
US Capacity Filter0 to 55 lbs
Accuracy0.0005"
Product TypeBall
M142.47"
M226.88"
M328.44"
C3.625"
D3.125"
M3.625"
CHole1.50" DIA
CBORE10 - 32
Thread10 - 32
Holes10
Hx.91"
Hy1.82"
SLOT1.50 x 2.50
Work Surface4.12 X 4.12
Through Hole10
Axis(X) Single Axis
Option PL1
Option PL Price50
OrientationNone (slide only)
Capacity XY30 lbs
