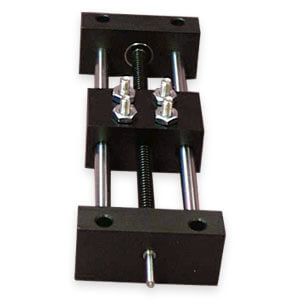

Isotech PST Linear Positioning Table

SKU: Isotech-PST Category:

* Request quote to see pricing

Request Quote

Load Capacity

From Light Loads to Heavy Payloads up to 2,000 lbs

Speed

Up to 18 Inches Per Second

Travel

Up to 48 inches

Linear Accuracy

+/- .005

Construction

Aluminum and Steel

Motor Adapter

To customer specifications

Maximum Length

6 in (160mm)

Repeatability

+/- 0.004 in

Positional Accuracy

+/- 0.005/36 in

Screw Thread

1/4-16, 1/4-20, 1/4-3, 1/4-4

Input Shaft

0.09375 in

Maximum Speed

10 in/sec

Weight - First Inch of Travel

4.4 oz.

Weight - Additional Per Inch

1 oz.

Dimension Drawing

Isotech PST Linear Positioning Table PDF
