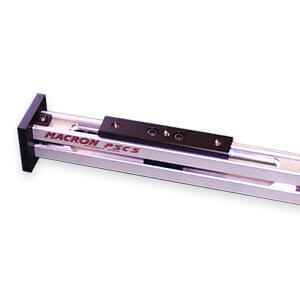

Isotech PSCS Linear Positioning Table

SKU: Isotech-PSCS-Linear-Positioning-Table Category:

* Request quote to see pricing

Request Quote

Load Capacity

From Light Loads to Heavy Payloads up to 2,000 lbs

Speed

Up to 18 Inches Per Second

Travel

Up to 48 inches

Linear Accuracy

+/- .005

Construction

Aluminum and Steel

Motor Adapter

NEMA 23 (standard) – Custom mounting optional

Maximum Length

12 in (305mm)

Repeatability

+/- 0.075 in

Positional Accuracy

+/- 0.005/6 in

Screw Thread

1/4-16, 1/4-20, 1/4-3, 1/4-4

Input Shaft

0.25 in

Maximum Speed

10 in/sec

Weight - First Inch of Travel

12 oz.

Weight - Additional Per Inch

1.25 oz.

Dimension Drawing

Isotech PSCS Linear Positioning Table PDF
