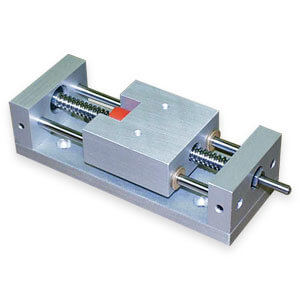

Isotech D6RT Linear Positioning Table

SKU: Isotech-D6RT-Linear-Positioning-Table Category:

* Request quote to see pricing

Request Quote

Load Capacity

From Light Loads to Heavy Payloads up to 2,000 lbs

Speed

Up to 18 Inches Per Second

Travel

Up to 48 inches

Linear Accuracy

+/- .005

Construction

Aluminum and Steel

Motor Adapter

NEMA 34 (standard) – Other sizes optional

Maximum Length

48 in (1220mm)

Repeatability

Application specific

Positional Accuracy

+/- 0.005/6 in

Screw Thread

Application specific

Maximum Speed

18 in/sec

Weight - First Inch of Travel

17 lbs (40×160 extrusion)

Weight - Additional Per Inch

1 lb (40×160 extrusion)

Dimension Drawing

Isotech D6RT Linear Positioning Table PDF
