The integration of the slide guide and precision ball screw eliminates complex precision adjustment and reduces installation time dramatically.
“U” shaped guide rail provides very high rigidity despite its compact configuration and can be used for one-end supported application.

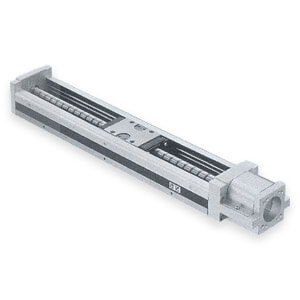

BG type linear actuator contains four ball circuits and four-point contact ball grooves which contributes to its high
rigidity. The combination of precision ground guide rail, slide block and precision ball screw provides high positioning accuracy.
In comparison to conventional positioning tables, the BG type allows for compact designs and dramatic space saving. The “U” shaped guide rail and integrated slide block / precision ball screw nut make this possible.
