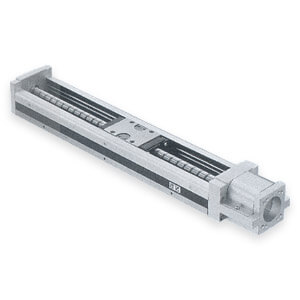

BG Type Ball Screw Linear Actuators

BG Type Linear Actuators

Series: BG

  • Load Capacity: 4.10 – 36.8 kN
  • Travel: 100 – 1380 mm
  • Length: 100 – 1380 mm
  • Positioning Accuracy: 15 – 100 um
  • Positional Repeatability: 3 – 5 um
  • Coefficient of Friction: 0.01
  • Construction: Aluminum base and carriage.
  • Finish: Clear anodize.

Isotech’s BG Type is a compact single axis actuator which integrates a slide guide and precision ball screw. The BG Type Ball Screw Linear Actuator offers compact dimensions, which outperforms conventional positioning tables. This is made possible by a unique “U” shaped Guide Rail and Slide Block which provides multiple functions of a Guide Block and a Ball Screw Nut combined into a single unit. The “U” shaped Guide Rail design offers a high rigid structure resistant to bending. This structural feature allows for integrated frameworks of machinery or equipment. Additionally, the Slide Block contains 4 ball circuits which delivers high load capacity, high accuracy and high rigidity.
