| Unit | US Standard |
|---|---|
| Series | S3-SS |
| Travel | 4" |
| US Travel Filter | 2.01 to 4" |
| Capacity | 122 lbs |
| US Capacity Filter | 111 to 165 lbs |
| Weight | 1.5 lbs |
| A | 6.000" |
| B | 1.000" |
| C | 2.620" |
| D | 5.000" |
| E | 1.250" |
| F | 0.610" |
| G | 1.50" |
| H | 5.375" |
| Accuracy | 0.0001" |
| Product Type | Ball Slide |
| Finish | Black-Other |
| D1 | 0.328 |
| D2 | .328" |
| d_small | .204" |
| h_small | .205" |
| I | #10-32 |
| M1 | 86.02 |
| M2 | 181.72 |
| M3 | 190.81 |

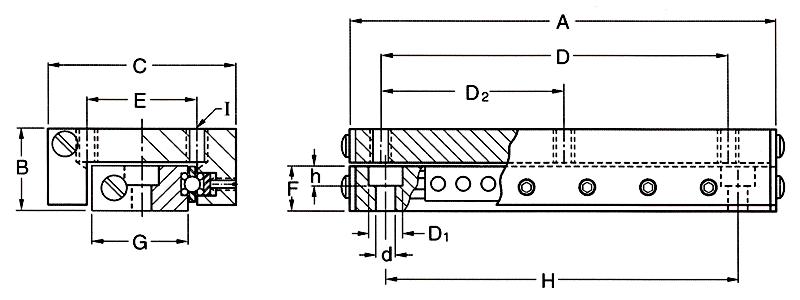

Dimension Drawing
