Model WX Special WF Fan Construction Bases, Supplemental Base Mounted Isolated Non-Seismic

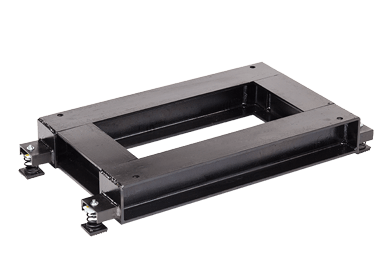

The VMC Group WX Special WF Fan Construction Bases with open spring isolators are designed with wide flange members and height saving brackets. Integral motorslide rails are incorporated into the base. The depth of the wide flange beam is 1/10th of the longest member. Available with 1″- 5″ deflection isolators.

The VMC Group WX Special WF Fan Construction Bases are designed for fan wheel diameters from 12″ – 108″ and support motors up to 200hp. They are available for single width and double width fans, classes I,II & III. Bases can be fabricated without motor sliderails for use in other fan arrangements without an integral base. The VMC Group WX Special WF Fan Construction Bases help maintain proper drive alignment and resist starting torque without the use of restraining snubbers.

When an equipment submittal drawing is provided to the VMC Engineering Services division, a properly designed base or rail drawing, indicating isolator model numbers is produced for customer approval. Once approved, drawings are provided to our manufacturing department for fabrication and shipment.
