Model VSM6SD-50, High Precision Positioning Stage
UnitMetric
SeriesVSM6
Work Surface89 x 152
Travel50 mm
Metric Travel Filter0 to 50 mm
Product TypeCROSSED ROLLER RAIL

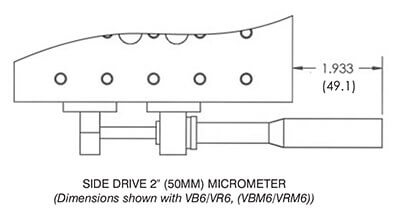

DriveSIDE
ActuatorMICROMETER
PosiLockNO
Capacity71 kg
Metric Capacity Filter51 to 75 kg
M18.57
M236.74
M338.58
Accuracy0.0025"
Repeatability0.0025
CofFriction0.002
