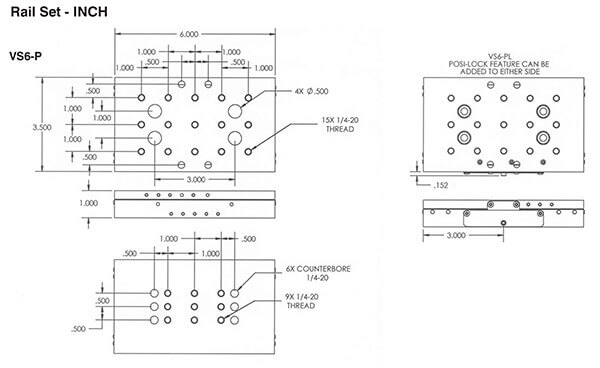

Model VS6-2-D-PL, High Precision Positioning Stage
UnitUS Standard
SeriesVS6
IMInch
Work Surface3.5 X 6
Travel2"
US Travel Filter0 to 2"
Product TypeCROSSED ROLLER RAIL
DriveCENTER
Actuator100 TPI ADJUSTMENT
PosiLockYES
Capacity158 lbs
US Capacity Filter111 to 165 lbs
M175.84
M2325.12
M3341.44
Accuracy0.0001"
Repeatability0.0001
CofFriction0.002
