| Unit | US Standard |
|---|---|
| Series | VS3 |
| IM | Inch |
| Work Surface | 3.5 X 3.5 |
| Travel | 1" |
| US Travel Filter | 0 to 2" |
| Product Type | CROSSED ROLLER RAIL |
| Drive | CENTER |
| Actuator | MOTORIZED |
| PosiLock | YES |
| Capacity | 116 lbs |
| US Capacity Filter | 111 to 165 lbs |
| M1 | 37.04 |
| M2 | 99.76 |
| M3 | 104.72 |
| Accuracy | 0.0001" |
| Repeatability | 0.0001 |
| CofFriction | 0.002 |

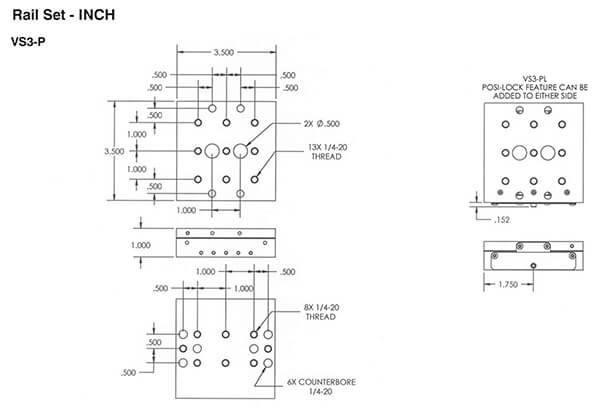

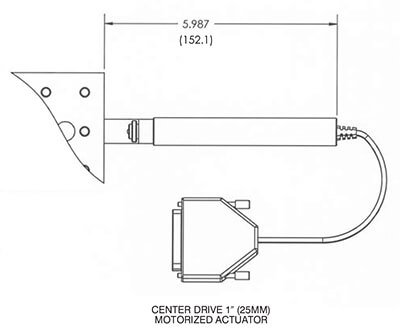

Dimension Drawing
