Model VRM4SD-12.5-D, High Precision Positioning Stage
UnitMetric
SeriesVRM4
Work Surface76 X 102
Travel12.5 mm
Metric Travel Filter0 to 50 mm
Product TypeCrossed Roller

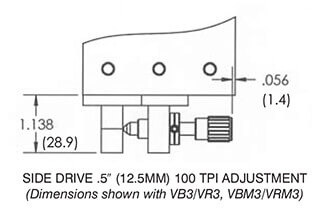

DriveSIDE
Actuator100 TPI ADJUSTMENT
PosiLockNO
Capacity91 kg
Metric Capacity Filter76 to 100 kg
M116.31
M220.33
M321.34
Accuracy0.001 mm
Repeatability0.0005
CofFriction0.002
