Model VRM4-25-D, High Precision Positioning Stage
UnitMetric
SeriesVRM4
Work Surface76 X 102
Travel25 mm
Metric Travel Filter0 to 50 mm
Product TypeCrossed Roller
DriveCENTER

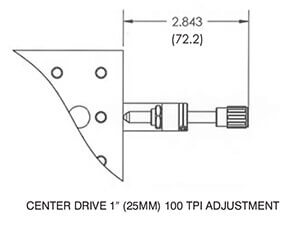

Actuator100 TPI ADJUSTMENT
PosiLockNO
Capacity91 kg
Metric Capacity Filter76 to 100 kg
M116.31
M220.33
M321.34
Accuracy0.001 mm
Repeatability0.0005
CofFriction0.002
