| Unit | US Standard |
|---|---|
| Series | VR6 |
| IM | Inch |
| Work Surface | 3 X 6 |
| Travel | 1" |
| US Travel Filter | 0 to 2" |
| Product Type | Crossed Roller |
| Drive | CENTER |
| Actuator | MICROMETER |
| PosiLock | NO |
| Capacity | 312 lbs |
| US Capacity Filter | 221 to 330 lbs |
| M1 | 266.39 |
| M2 | 464.64 |
| M3 | 487.87 |
| Accuracy | 0.00004" |
| Repeatability | 0.00002 |
| CofFriction | 0.002 |

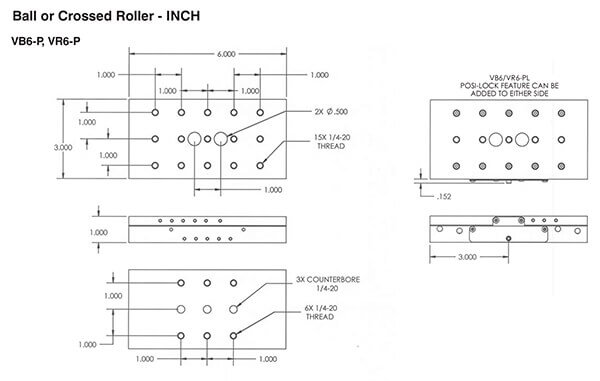

Dimension Drawing
