| Unit | US Standard |
|---|---|
| Series | VB6 |
| IM | Inch |
| Work Surface | 3 X 6 |
| Travel | 2" |
| US Travel Filter | 0 to 2" |
| Product Type | BALL BEARING |
| Drive | CENTER |
| Actuator | MICROMETER |
| PosiLock | YES |
| Capacity | 105 lbs |
| US Capacity Filter | 56 to 110 lbs |
| M1 | 76.98 |
| M2 | 162.62 |
| M3 | 170.75 |
| Accuracy | 0.00004" |
| Repeatability | 0.00002 |
| CofFriction | 0.002 |

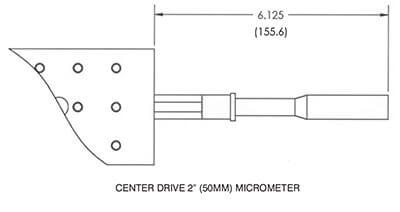

Dimension Drawing
