Model VB3-.5-T, High Precision Positioning Stage

SKU: VB3-.5-T Category:

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

VB3

IM

Inch

Work Surface

3 X 3

Travel

0.5"

US Travel Filter

0 to 2"

Product Type

BALL BEARING

Drive

CENTER

Actuator

MOTORIZED

PosiLock

NO

Capacity

58 lbs

US Capacity Filter

56 to 110 lbs

M1

32.28

M2

26.6

M3

28.18

Accuracy

0.00004"

Repeatability

0.00002

CofFriction

0.002

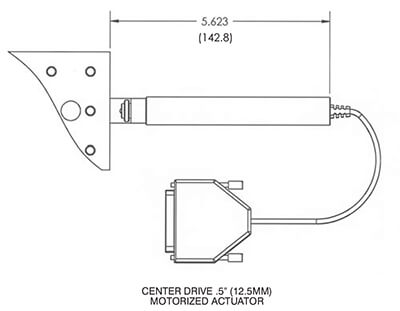

Dimension Drawing
