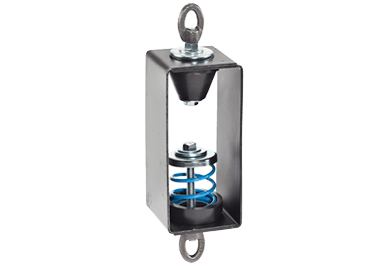

Model RSHSC Rubber and Spring Hangers, Architectural Non-Seismic

SKU: RSHSC-Rubber-and-Spring-Hangers Category:

* Request quote to see pricing

Request Quote

RSHSC Series are isolation hangers that combine a coil spring and a neoprene element within the same hanger. The RSHSC Series are ideal for controlling both high and low frequency problems occurring within or outside of protected spaces.

The RSHSC combination spring and neoprene vibration hangers consist of two isolation elements – a low frequency, standard coil spring seated in a neoprene cup, and a high frequency neoprene element. Both the spring and the neoprene element are molded to integral bushings that prevent the lower and upper support attachments from coming in contact with the isolator housing. The RSHSC Series isolators offer up to 2.2″ of static deflection over a wide range of loads. The springs are color-coded for simple identification in the field. The hangers provide eyelets on the top and bottom to accept wire or rod attachment for ease of installation.

Features & Benefits
Combination of a coil spring and a neoprene element provides superior isolation for both low and high frequency situations
Standard coil spring offers up to 2.2″ of static deflection with loads from 21 to 370 lbs.
Steel housing provides durability and stability
Upper and lower eyelets accept wire or rod attachment for ease of installation
Bushings molded to the spring isolator and to the neoprene element prevent both the lower and upper support attachments from coming in contact with the housing
Color coded spring provides easy identification for installation and inspection

Applications
Commercial utility and HVAC space
Performing arts centers
Computer operation rooms
Entertainment, social event spaces and health clubs
Transportation depots
Hospitals and research facilities
Office and residential complexes

Model RSHSC 1B 20-85 lbs. Elastomeric and spring isolator with offset eyesocket 1 inch deflection

Model RSHSC 1C 15-520 lbs. Elastomeric and spring hanger with offset eyesocket 1inch deflection

Model ANFF-4 1000-3500 lbs. Elastomeric isolator 6 inch floating floor 0.02-0.03 deflection
