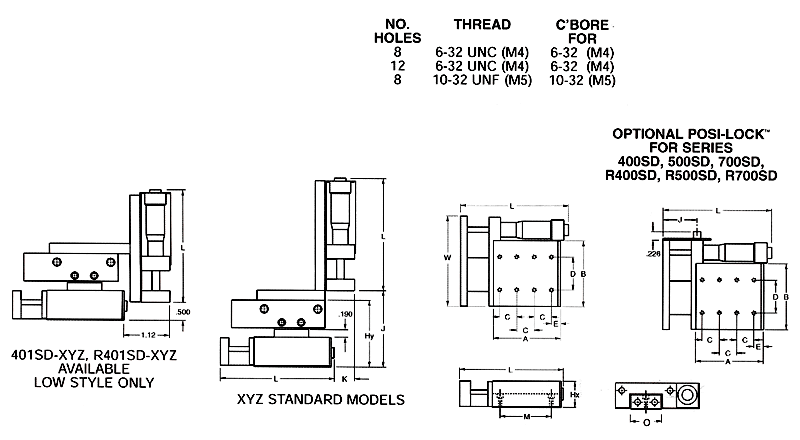

Model R702SD-XYZ, Side Drive Positioning Stage
capacityz80 lbs
capacityxy160 lbs
UnitUS Standard
Series700SD, R700SD
IMInch
Travel1.00"
US Travel Filter0 to 2"
Capacity160 lbs
US Capacity Filter111 to 165 lbs
Accuracy0.0001"
Product TypeCrossed Roller
M1116.64"
M2116.64"
M3116.64"
C1.00"
D1.25"
E.50"
M3.38"
CBORE10 - 32
Thread10 - 32
Holes8
O1.500"
P1.505"
L5.18"
Hx1.00"
J2 - 56
K.366"
Hy2.19"
Capacity XY160 lbs
Capacity Z80 lbs
Work Surface4.00 X 2.62
Through Hole8
W3.43 lbs
Axis(XYZ) Triple Axis
Option LM1
Option PL1
Option PL Price150
OrientationSide Drive
