Model R501SD-X, Side Drive Positioning Stage

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

501SD, R501SD

Travel

.50"

IM

Inch

US Travel Filter

0 to 2"

Capacity

80 lbs

US Capacity Filter

56 to 110 lbs

Accuracy

0.0001"

Product Type

Crossed Roller

M1

34.02"

M2

34.02"

M3

34.02"

C

.55"

D

.875"

E

.25"

M

2.75"

CBORE

6 – 32

Thread

6 – 32

Holes

12

O

.875"

P

1.008"

L

4.15"

Hx

.75"

J

1.94"

Hy

1.69"

Work Surface

3.25 X 1.75

Through Hole

12

W

2.40 lbs

Axis

(X) Single Axis

Option M Price

0

Option LM

1

Option LM Price

0

Option PL

1

Option PL Price

50

Orientation

Side Drive

Capacity XY

80 lbs

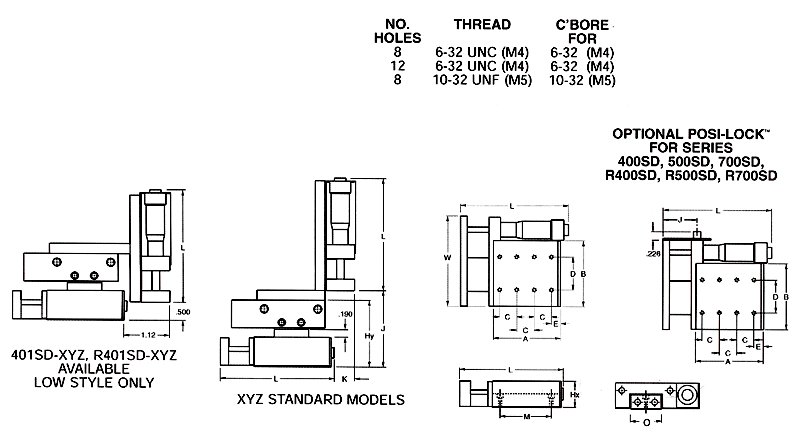

Dimension Drawing
