Model R201SD-XYZ, Side Drive Positioning Stage
capacityz18 lbs
capacityxy23 lbs
UnitUS Standard
Series201SD, R201SD
IMInch
Travel.50"
US Travel Filter0 to 2"
Capacity23 lbs
US Capacity Filter0 to 55 lbs
Accuracy0.0001"
Product TypeCrossed Roller

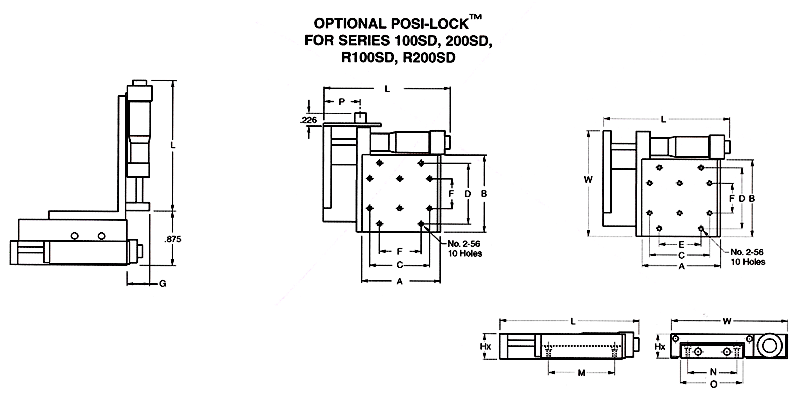

M114.49"
M213.8"
M313.8"
C1.50"
D1.50"
E1.19"
F1.00"
M.50"
CBORE2 - 56
Thread2 - 56
Holes10
N1.19"
O1.440"
P.611"
L2.42"
Hx.38"
Capacity XY30 lbs
Capacity Z18 lbs
Work Surface1.75 X 1.75
Through Hole10
W2.26 lbs
Axis(XYZ) Triple Axis
Option PL1
Option PL Price150
OrientationSide Drive
