Model R101SD-XY, Side Drive Positioning Stage

* Request quote to see pricing

Request Quote

capacityxy

Unit

US Standard

Series

101SD, R101SD

IM

Inch

Travel

.50"

US Travel Filter

0 to 2"

Capacity

23 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0001"

Product Type

Crossed Roller

M1

9.66"

M2

9.2"

M3

9.2"

C

1.00"

D

1.00"

E

.69"

F

.50"

M

1.00"

CBORE

2 – 56

Thread

2 – 56

Holes

10

N

.69"

O

.940"

P

.611"

L

2.16"

Hx

.38"

Work Surface

1.25 X 1.25

Through Hole

10

W

1.75 lbs

Axis

(XY) Double Axis

Option M Price

0

Option LM

0

Option LM Price

0

Option PL

1

Option PL Price

100

Orientation

Side Drive

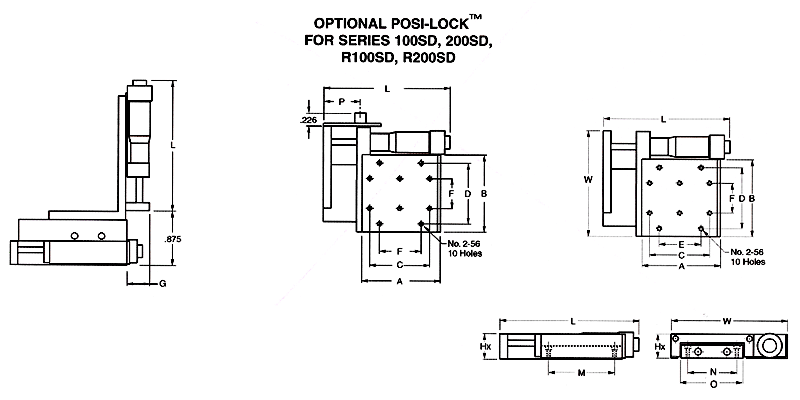

Dimension Drawing
