| Unit | US Standard |
|---|---|
| Series | NBTA-3 |
| Travel | 4.00" |
| US Travel Filter | 2.01 to 4" |
| Capacity | 308.0 lbs |
| US Capacity Filter | 221 to 330 lbs |
| Accuracy | 0.0001" |
| Product Type | Crossed Roller |
| M1 | 165.9" |
| M2 | 419.5" |
| M3 | 440.5" |
| A | 1.250" |
| B | 3.000" |
| C | .405" |
| D | 0.330" |
| M | 3X1.000" |
| CHole | 1.005" |
| Base Holes | 4 |
| Carriage Holes | 8 |
| S | 2.375" |
| P | 1.375" |
| L | 5" |
| J | 10 – 32 |
| K | 0.330" |
| R | 0.496" |
| U | 4.000" |
| d_small | 0.204" |
| h_small | .205" |
| Rail Material Type | Steel |
| Screw Size | #10 |

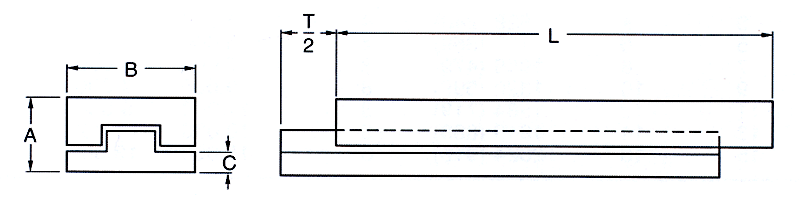

Dimension Drawing
