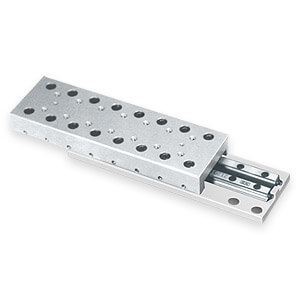

Aluminum / Stainless Steel Crossed Roller Tables (Inch Series)

Aluminum / Stainless Steel Crossed Roller Tables (Inch Series)Series: NBTA-2, NBTA-3, NBTA-4

  • Load Capacity: 154 – 2024 lbs.
  • Travel: 1 – 15″
  • Length: 2 – 16″
  • Straight Line Accuracy: 0.0001″ / inch of travel
  • Positional Repeatability: .0001″
  • Coefficient of Friction: 0.003 typical
  • Construction: Aluminum carriage and base, hardened steel or 400 Series stainless crossed roller rail sets.
  • Finish: Clear anodize carriage and clear anodize base.

This series of aluminum crossed roller tables offers the designer a robust crossed roller positioning table made to the same standards as our NBTA series but with inch type overall dimensions. Each cross section is designated by its width 2″, 3″, and 4″.

For applications where particulate contamination caused by corrosion must be reduced. Isotech offers Inch Series crossed roller tables equipped with corrosion-resistant, stainless steel, crossed roller linear bearings.

  • High accuracy and load capacity with precision ground V grooved ways and rollers.
  • Withstands force in any direction by using alternately crossed rollers 45° angle.
  • Easy installation with threaded mounting holes in standard pattern.
  • 400 series Stainless Steel models available. (Rails only)
  • Lightweight aluminum base and carriage.
  • Interchangeable with other manufacturer’s slides.
