Model NBT-4125A, Crossed Roller Slide Tables

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

NBT-4000A

Travel

3.00"

US Travel Filter

2.01 to 4"

Capacity

600.0 lbs

US Capacity Filter

501 to 1000 lbs

Accuracy

0.0001"

Product Type

Crossed Roller

M1

425.3"

M2

821"

M3

862.1"

A

1.378"

B

3.150"

C

0.413"

D

0.328"

M

1X1.575"

CHole

1.673"

Base Holes

4

Carriage Holes

4

S

2.165"

P

1.575"

L

4.921"

J

10 – 32

K

0.512"

R

0.394"

U

4.134"

d_small

0.197"

h_small

.205"

Rail Material Type

Steel

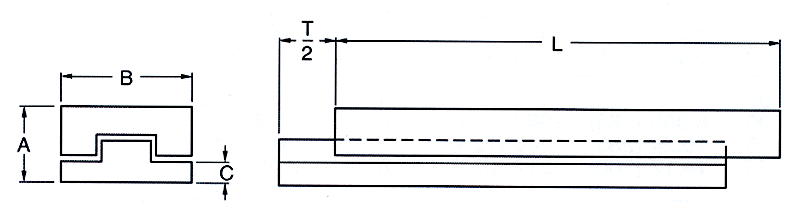

Dimension Drawing
