Model NBT-3155A-90M, Crossed Roller Slide Tables (Aluminum) Metric
UnitMetric
SeriesNBT-3000AM
Travel90 mm
Metric Travel Filter51 to 100 mm
Capacity217 kg
Metric Capacity Filter0 to 500 kg

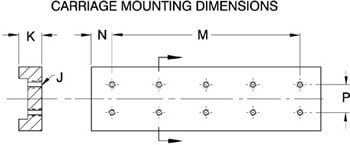

L155 mm
Base Holes4
U135 mm
Carriage Holes10
M4X25 mm
N27.5 mm
P25 mm
JM5
K10.5 mm
R10 mm
S40 mm
D10.1 mm
d_small5.8 mm
A28 mm
B60 mm
C9 mm
Accuracy0.0025 mm
Product TypeCrossed Roller
M124.7
M299.21
M3104.17
Carriage Material TypeAluminum
Rail Material TypeSteel
