| Unit | US Standard |
|---|---|
| Series | NBT-1000A |
| Travel | 3.00" |
| US Travel Filter | 2.01 to 4" |
| Capacity | 197 lbs |
| US Capacity Filter | 166 to 220 lbs |
| Accuracy | 0.0001" |
| Product Type | Crossed Roller |
| M1 | 45.8" |
| M2 | 270.9" |
| M3 | 284.5" |
| A | 0.590" |
| B | 1.181" |
| C | 0.160" |
| D | 0.198" |
| M | 6X.5906" |
| CHole | 0.689" |
| Base Holes | 8 |
| Carriage Holes | 14 |
| S | 0.866" |
| P | 0.394" |
| L | 4.921" |
| J | 4 – 40 |
| K | 0.177" |
| R | 0.197" |
| U | 4.528" |
| d_small | 0.125" |
| h_small | .125" |
| Rail Material Type | Steel |
| W | 3.346" |

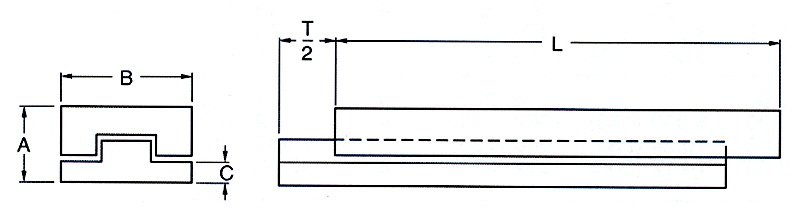

Dimension Drawing
