Model N-3, Ball Slide Assemblies

SKU: N-3 Category:

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

N

Travel

2"

US Travel Filter

0 to 2"

Capacity

20 lbs

US Capacity Filter

0 to 55 lbs

Weight

3 lbs

A

3.560"

B

0.530"

C

1.060"

D

3.250"

E

0.437"

F

0.312"

G

0.500"

H

3.125"

Carriage Holes

6-32 UNC-2B Thread

Hole (d)

.157"

Hole (D1)

.244"

Hole H

.150"

Counter Bore

#6

Accuracy

0.0005"

Product Type

Ball Slide

Finish

Clear-Black

M1

5.13

M2

18

M3

18.9

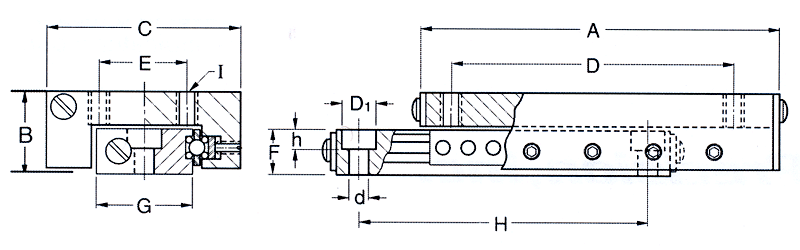

Dimension Drawing
